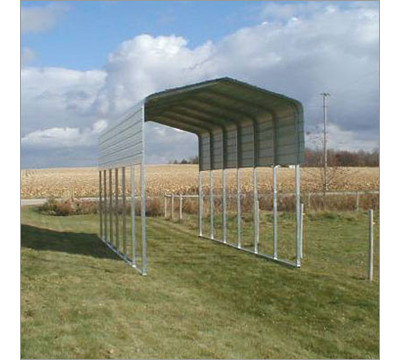

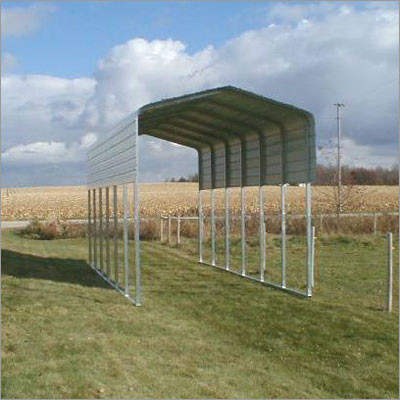

This VersaTube Building Systems 14 x 10.5 ft Carport features 2 x 3 inch heavy gauge galvanized steel tubing, which can be configured to cover any area requiring shelter from the elements. It can be assembled easily on any level surface by following the instructions and by using the ground anchors provided. With 67 percent of all steel recyclable, this Carport is an environmentally-sound building system for the DIY consumer. The patented slip-fit connections contribute to the ease and speed of assembly.
This Carport includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. It features a 3:12 roof pitch and is engineered to address local ground snow and wind load conditions. The roofing and siding features 29-gauge painted steel panels, quality low-maintenance finish that resists stains, dirt retention, chalking and fading, and silicon coating for easy cleaning. This Carport is available in different lengths and colors.
|
|
|
|
|
|
|
|
|
|
|
|
-
Frame Type: A - Frame
-
Frame Materials: 2.00 x 3.00 inch heavy gauge galvanized steel tube
-
Frame Finish: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Cover Material: 29 gauge painted steel panel
-
Width: 14 ft
-
Cover Finish/Color: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Length: (20 - 60.5) ft
-
Shelter Usage: (2) Cars
-
Design Ratings: Wind, Rust, Fire, Termites, Rot
-
Legs: 10
-
Adjustable Height: No
-
Enclosures: Half enclosure
-
Base: 14 x (20.00 - 60.50) ft
-
Trusses: With Truss
-
Includes: Anchors, Vinyl trim, Butyl tape
-
Height: 10.5 ft
-
Package Weight: 1042.00 - 2662.00 lbs
-
Package Size: 126.00 x 46.00 x (16.00 - 28.00) in
-
 Installation Instructions
Product Overview & Specs
This VersaTube Building Systems 14 x 10.5 ft Carport features 2 x 3 inch heavy gauge galvanized steel tubing, which can be configured to cover any area requiring shelter from the elements. It can be assembled easily on any level surface by following the instructions and by using the ground anchors provided. With 67 percent of all steel recyclable, this Carport is an environmentally-sound building system for the DIY consumer. The patented slip-fit connections contribute to the ease and speed of assembly.
This Carport includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. It features a 3:12 roof pitch and is engineered to address local ground snow and wind load conditions. The roofing and siding features 29-gauge painted steel panels, quality low-maintenance finish that resists stains, dirt retention, chalking and fading, and silicon coating for easy cleaning. This Carport is available in different lengths and colors.
- All-steel framing system with 2" x 3" heavy gauge triple layer galvanized steel tubing
- 3:12 Roof pitch
- Engineered to address local ground snow and wind load conditions
- Patented slip-fit connections
- Silicon coating in roofing and siding
- 29 gauge Painted steel panels in roofing and siding
- 80,000 psi Yield strength minimum
- Quality low-maintenance finish
- Includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape
- Choose from different colors
- Available in different lengths
|
|
|
|
|
|
Images
|
|
|
|
|
About VersaTube Building Systems
|
Authorized VersaTube Building Systems Retailer
See all VersaTube Building Systems
|
VersaTube Building Systems is a successful part of the carport manufacturing industry with two manufacturing facilities - one at their corporate headquarters in Collierville, TN and the other near Tempe, AZ. With a pre-engineered, ready-to-assemble shelter, building framing system and packaged kits, one is able to get the quality and flexibility they are looking for. Steel structures provide the ideal outdoor protection for your vehicles, tools and equipment, feed and livestock, or other possessions requiring a durable storage solution.
Their patented design and connection process is unique within the metal building industry - simplifying and reducing assembly time and cost; one is even capable of erecting the apparatus themselves without the need for outside contractors. VersaTube Building Systems's unique “Slip-Fit” design dramatically simplifies the installation process.
|
|
|
| Warranty |
|
Main Item
20 year manufacturer's warranty on paint
|
| Returns |
|
Main Item
30 day returns. No restocking fee.
|
|
