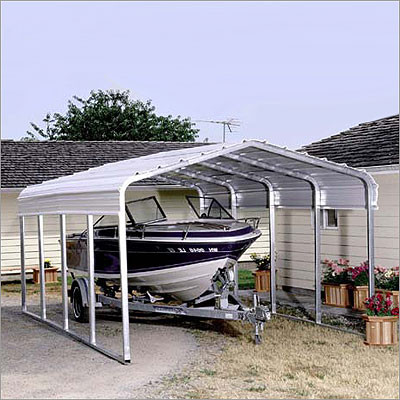

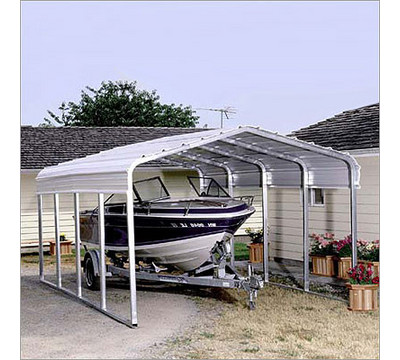

All-steel framing system in this VersaTube Building Systems 24 x 8.5 ft Type 3 Truss Carport uses primarily 2 x 3 inch heavy gauge triple layer galvanized steel tubing that is resistant to rust, fire, termites and rot. It has patented slip-fit connections that contribute to the ease and speed of assembly. With 67 percent of all steel recyclable, the versatube is an environmentally-sound building system for consumers. The quality low-maintenance finish resists stains, dirt retention, chalking and fading. This Carport features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions, silicon coating for easy cleaning, and 80,000 psi yield strength minimum. It includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. This is available in wide range of lengths and variety of colors.
|
|
|
|
|
|
|
|
|
|
|
-
Frame Type: A - Frame
-
Frame Materials: 2.00 x 3.00 inch heavy gauge galvanized steel tube
-
Frame Finish: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Cover Material: 29 gauge painted steel panel
-
Width: 24 ft
-
Cover Finish/Color: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Length: (20 - 60.5) ft
-
Shelter Usage: (1) Boat
-
Design Ratings: Wind, Rust, Fire, Termites, Rot
-
Legs: 10
-
Adjustable Height: No
-
Enclosures: No
-
Base: 24 x (20.00 - 60.50) ft
-
Trusses: With Truss
-
Includes: Anchors, Vinyl trim, Butyl tape
-
Height: 8.5 ft
-
Weight: 1297.00 - 4267.00 lbs
-
Package Weight: 1394.00 - 4221.00 lbs
-
Package Size: 126.00 x 46.00 x (16.00 - 28.00) in
-
Installation Instructions
Product Overview & Specs
All-steel framing system in this VersaTube Building Systems 24 x 8.5 ft Type 3 Truss Carport uses primarily 2 x 3 inch heavy gauge triple layer galvanized steel tubing that is resistant to rust, fire, termites and rot. It has patented slip-fit connections that contribute to the ease and speed of assembly. With 67 percent of all steel recyclable, the versatube is an environmentally-sound building system for consumers. The quality low-maintenance finish resists stains, dirt retention, chalking and fading. This Carport features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions, silicon coating for easy cleaning, and 80,000 psi yield strength minimum. It includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. This is available in wide range of lengths and variety of colors.
- Patented slip-fit connections
- Heavy gauge triple layer galvanized steel tubing
- Silicon coating for easy cleaning
- Quality low-maintenance finish
- 29 gauge painted steel panels
- 3:12 Roof pitch and engineered to address local ground snow and wind load conditions
- Incorporates recycled steel
- 80,000 psi Yield strength minimum
- Environmentally-sound building system
- Includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape
- Available in wide range of lengths and different colors
|
|
|
|
|
Images
|
|
|
|
|
About VersaTube Building Systems
|
Authorized VersaTube Building Systems Retailer See all VersaTube Building Systems
|
VersaTube Building Systems is a successful part of the carport manufacturing industry with two manufacturing facilities - one at their corporate headquarters in Collierville, TN and the other near Tempe, AZ. With a pre-engineered, ready-to-assemble shelter, building framing system and packaged kits, one is able to get the quality and flexibility they are looking for. Steel structures provide the ideal outdoor protection for your vehicles, tools and equipment, feed and livestock, or other possessions requiring a durable storage solution.
Their patented design and connection process is unique within the metal building industry - simplifying and reducing assembly time and cost; one is even capable of erecting the apparatus themselves without the need for outside contractors. VersaTube Building Systems's unique “Slip-Fit” design dramatically simplifies the installation process.
|
|
|
| Warranty |
|
Main Item 20 year manufacturer's warranty on paint
|
| Returns |
|
Main Item 30 day returns. No restocking fee.
|
|
